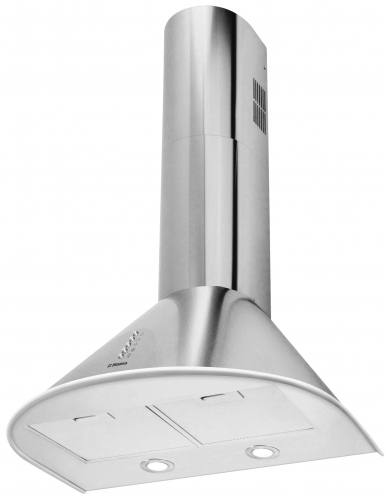

OKP6222MH
1160896
Specification
FEATURES
| Accessories Pipe | Air flaps Yes | Montage template Yes |
| Panel - language version Pictograms | Pipe Yes | Protection class of electric shock I_Class |
| Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 2 | Number of grease filters 2 | Number of layers in grease filter 5 |
| Number of speed 3 | Type of control Push buttons | Type of grease filters Aluminium frame |
| Carbon filter type FWP 18 |
Technical data
| Air flow at 1 speed - extractor by EN 61591 350 m3/h | Air flow at 2 speed - extractor by EN 61591 405 m3/h | Air flow at 3 speed - extractor by EN 61591 457 m3/h | ||||||||||||||||||||||||||||
| Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 457 m3/h | Air Flow at Minimum Speed in Normal Use 350 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 251.6 m3/h | ||||||||||||||||||||||||||||
| Air Pressure at Best Efficiency Point P BEP 263 Pa | Annual energy consumption 66.6 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 374.8 lux | ||||||||||||||||||||||||||||
| Container qty 40'HQ 437 | Control panel on one side/two sides One side | Country of Origin on Rating Label Made in PRC | ||||||||||||||||||||||||||||
| Dimensions of grease filter 282 x 194 mm | Display color No | Distance from light cover to wall 15 mm | ||||||||||||||||||||||||||||
| Distance to electric hob 450 mm | Distance to gas hob 650 mm | Electric Power Input at Best Efficiency Point - W BEP 118.9 W | ||||||||||||||||||||||||||||
| Fluid Dynamic Efficiency - FDE hood 15.5 | Fluid Dynamic Efficiency Class D | Grease Filtering Efficiency - GFE hood 76 % | ||||||||||||||||||||||||||||
| Grease Filtering Efficiency Class C | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 46.9 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 457 m3/h | Motor unit rated power 150 W | Motor type/model C series | Net depth 545 mm | Net height max 1108 mm | Net height min 728 mm | Net weight 8.5 kg | Net width 600 mm | Noise level at 1 speed - extractor by EN 60704-2-13 59 dB | Noise level at 2 speed - extractor by EN 60704-2-13 61 dB | Noise level at 3 speed - extractor by EN 60704-2-13 63 dB | Nominal Power of the Lighting System - W L 8 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 150 mm | Type of plug or cable Euro plug | Power cabel length 120 cm | Power rating 158 W | Power Supply Voltage 230V | Power unit of main lighting 4 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB | Sound Power Emission at Minimum Speed Available in Normal Use 59 dB | Noise level 63 dB | Time Increase Factor - f 1.4 | Type of main lighting LED GU10 |
