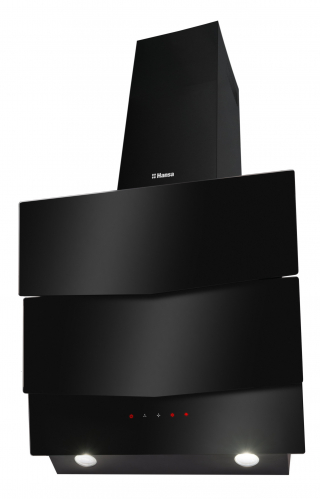

OKP6546SH
OKP6546SH
Specification
FEATURES
| Accessories Pipe | Air flaps Yes | Delay Yes |
| FrameOn Yes | Maximum time of delay 15 ' | Montage template Yes |
| Panel - language version Pictograms | Protection class of electric shock I_Class | Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 2 | Number of grease filters 1 | Number of layers in grease filter 5 |
| Number of speed 3 | Type of control Sensor | Type of grease filters Aluminium frame |
| Carbon filter type FWP 05 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 436 m3/h | Air flow at 2 speed - extractor by EN 61591 550 m3/h | ||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 650 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 650 m3/h | Air Flow at Minimum Speed in Normal Use 436 m3/h | ||||||||||||||||||||||||||||||
| Air Flow Rate at Best Efficiency Point - Q BEP 403.2 m3/h | Air Pressure at Best Efficiency Point P BEP 349.6 Pa | Annual energy consumption 81.3 kWh | ||||||||||||||||||||||||||||||
| Average Illumination of the Lighting System on the Cooking Surface - E middle 335 lux | Container qty 40'HQ 332 | Control panel on one side/two sides One side | ||||||||||||||||||||||||||||||
| Country of Origin on Rating Label Made in PRC | Dimensions of grease filter 398.8x325x2 | Display color Red | ||||||||||||||||||||||||||||||
| Distance from light cover to wall 32.1 mm | Distance to electric hob 450 mm | Distance to gas hob 650 mm | ||||||||||||||||||||||||||||||
| Electric Power Input at Best Efficiency Point - W BEP 173.1 W | Fluid Dynamic Efficiency - FDE hood 22.6 | Fluid Dynamic Efficiency Class C | ||||||||||||||||||||||||||||||
| Grease Filtering Efficiency - GFE hood 57 % | Grease Filtering Efficiency Class E | Internal/external motor Internal | Main lighting colour temperature [K] 3000 | Lighting Efficiency - LE hood 44.1 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 650 m3/h | Motor unit rated power 230 W | Motor type/model E series | Net depth 455 mm | Net height max 1240 mm | Net height min 860 mm | Net weight 20.9 kg | Net width 600 mm | Noise level at 1 speed - extractor by EN 60704-2-13 57 dB | Noise level at 2 speed - extractor by EN 60704-2-13 63 dB | Noise level at 3 speed - extractor by EN 60704-2-13 68 dB | Nominal Power of the Lighting System - W L 7.6 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 150 mm | Type of plug or cable Euro plug | Power Consumption in Off Mode - Po 0.45 W | Power cabel length 120 cm | Power rating 237 W | Power Supply Voltage 230V | Power unit of main lighting 3.5 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB | Sound Power Emission at Minimum Speed Available in Normal Use 57 dB | Noise level 68 dB | Time Increase Factor - f 1.2 | Type of main lighting LED GU10 |
