Carbon filter
Clean and efficient air extraction through integrated carbon filters.
(* carbon filter sold separately) -
LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Hansa hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Hansa hood, and enjoy the best solutions!
-
Sensor control system
Forget about cleaning the dirt which gathers around the buttons! The Hansa hoods feature touch panels located under a glass cover. With this, you can quickly and easily clean the panel, as well as have easy access to all hood functions. See how addictive can convenience be!

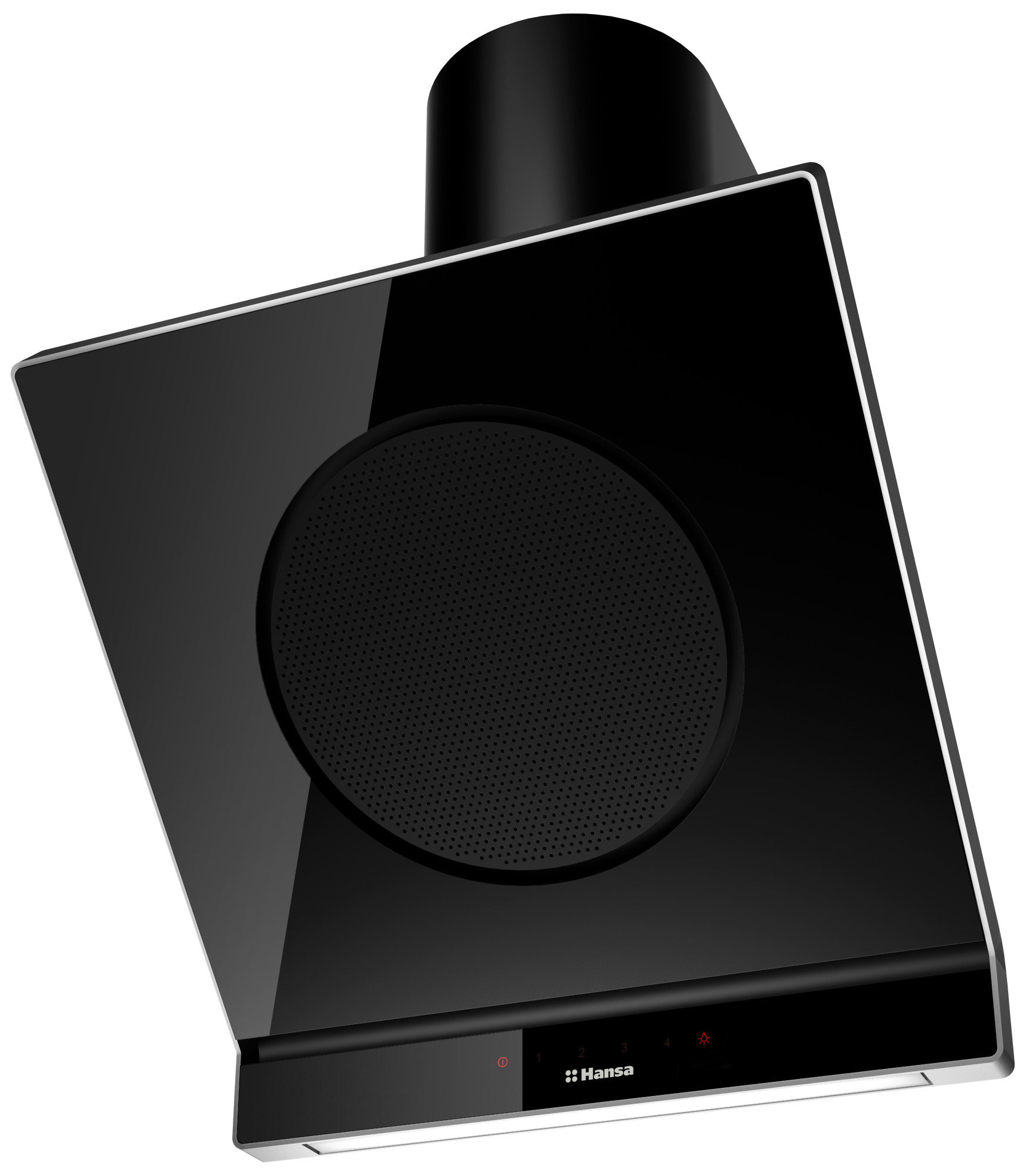

OKC 600 UBH
-
FEATURES
- Accessories -
- Air flaps Yes
- Delay Yes
- FrameOn Yes
- Maximum time of delay 10 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 1
- Number of grease filters 1
- Number of layers in grease filter 5
- Number of speed 4
- Type of control Sensor
- Type of grease filters Aluminium frame
- Carbon filter type FWK 300
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 260 m3/h
- Air flow at 2 speed - extractor by EN 61591 350 m3/h
- Air flow at 3 speed - extractor by EN 61591 438 m3/h
- Air flow at 4 speed - extractor by EN 61591 700 m3/h
- Air Flow at Intensive or Boost Setting [If Available] 700 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 438 m3/h
- Air Flow at Minimum Speed in Normal Use 260 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 434.8 m3/h
- Air Pressure at Best Efficiency Point P BEP 412 Pa
- Annual energy consumption 62.9 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 232 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in Poland
- Dimensions of grease filter 320 x 300 mm
- Display color Red
- Distance from light cover to wall 5 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 166.5 W
- Fluid Dynamic Efficiency - FDE hood 29.9
- Fluid Dynamic Efficiency Class A
- Grease Filtering Efficiency - GFE hood 71.9 %
- Grease Filtering Efficiency Class D
- Intensive or Boost Setting Auto-Off time 5 '
- Internal/external motor Internal
- Lighting Efficiency - LE hood 25.2 lux/W
- Lighting Efficiency Class B
- Lighting Efficiency Class B
- Limitation of Exhaust Air - t limit 9 '
- Maximum Possible Air Flow 700 m3/h
- Motor unit rated power 260 W
- Motor type/model S-45
- Net depth 455 mm
- Net height max 1435 mm
- Net height min 1080 mm
- Net weight 21.46 kg
- Net width 600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 50 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 55 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 60 dB
- Noise level at 4 speed - extractor by EN 60704-2-13 69 dB
- Nominal Power of the Lighting System - W L 9.2 W
- Number of motor units 1
- Number units of main lighting 1
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 170 cm
- Power rating 268.2 W
- Power Supply Voltage 230V
- Power unit of main lighting 8.2 W
- Sound Power Emission at Intensive or Boost Setting [if available] 69 dB
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 60 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 50 dB
- Noise level 60 dB
- Time Increase Factor - f 0.9
- Type of main lighting LED
