Carbon filter
Clean and efficient air extraction through integrated carbon filters.
(* carbon filter sold separately) -
LED display
It takes just a glance at the control display to check the hood setting, including the fan speed level and the remaining time left to run. Most models do not even require us to check when the filters need cleaning or changing - the filter indicators simply tell us when.
-
Lighting: halogen
Our hoods are equipped with halogen lights. On any model the light may be switched on even when the fan is not running. This may be used as an extra source of convenient lighting.
-
Sensor control system
Forget about cleaning the dirt which gathers around the buttons! The Hansa hoods feature touch panels located under a glass cover. With this, you can quickly and easily clean the panel, as well as have easy access to all hood functions. See how addictive can convenience be!

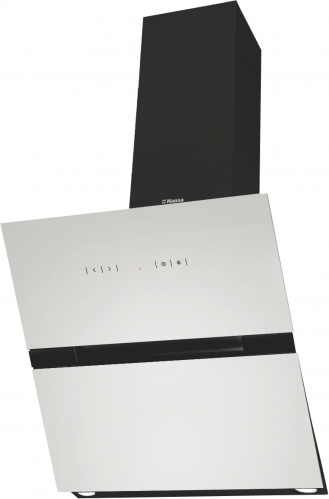

OKC653SWH
OKC653SWH
-
Carbon filter
-
LED display
-
Lighting: halogen
-
Sensor control system
-
FEATURES
- Accessories -
- Air flaps Yes
- ChildLock Yes
- Delay Yes
- FrameOn Yes
- Maximum time of delay 90 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 1
- Number of grease filters 1
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Sensor
- Type of display LED
- Type of grease filters Aluminium frame
- Carbon filter type FWK 250
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 162 m3/h
- Air flow at 2 speed - extractor by EN 61591 204 m3/h
- Air flow at 3 speed - extractor by EN 61591 384 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 384 m3/h
- Air Flow at Minimum Speed in Normal Use 162 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 202 m3/h
- Air Pressure at Best Efficiency Point P BEP 165 Pa
- Annual energy consumption 66.6 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 196 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in EU
- Dimensions of grease filter 270 x 250 x 9 mm
- Display color Red
- Distance from light cover to wall 8 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 102.7 W
- Fluid Dynamic Efficiency - FDE hood 9
- Fluid Dynamic Efficiency Class E
- Grease Filtering Efficiency - GFE hood 73.6 %
- Grease Filtering Efficiency Class D
- Internal/external motor Internal
- Lighting Efficiency - LE hood 49 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 384 m3/h
- Motor unit rated power 115 W
- Motor type/model K-28 030 00 HE
- Net depth 475 mm
- Net height max 1355 mm
- Net height min 1045 mm
- Net weight 20.4 kg
- Net width 600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 46 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 49 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 62 dB
- Nominal Power of the Lighting System - W L 4 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 170 cm
- Power rating 119 W
- Power Supply Voltage 230V
- Power unit of main lighting 2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 62 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 46 dB
- Noise level 62 dB
- Time Increase Factor - f 1.7
- Type of main lighting LED
