Carbon filters : 2
Clean and efficient air extraction through integrated carbon filters.
(* carbon filter sold separately) -
Lighting: halogen
Our hoods are equipped with halogen lights. On any model the light may be switched on even when the fan is not running. This may be used as an extra source of convenient lighting.
i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

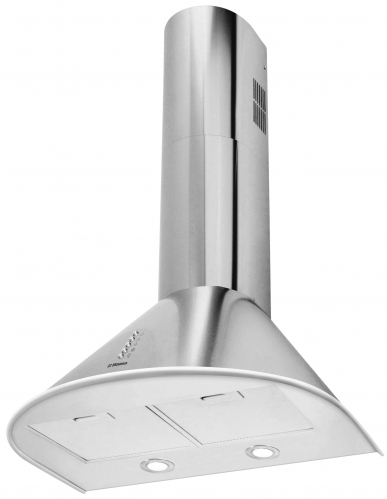

OKP6222MH
-
FEATURES
- Accessories Pipe
- Air flaps Yes
- Montage template Yes
- Panel - language version Pictograms
- Pipe Yes
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Push buttons
- Type of grease filters Aluminium frame
- Carbon filter type FWP 18
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 350 m3/h
- Air flow at 2 speed - extractor by EN 61591 405 m3/h
- Air flow at 3 speed - extractor by EN 61591 457 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 457 m3/h
- Air Flow at Minimum Speed in Normal Use 350 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 251.6 m3/h
- Air Pressure at Best Efficiency Point P BEP 263 Pa
- Annual energy consumption 66.6 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 374.8 lux
- Container qty 40'HQ 437
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in PRC
- Dimensions of grease filter 282 x 194 mm
- Display color No
- Distance from light cover to wall 15 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 118.9 W
- Fluid Dynamic Efficiency - FDE hood 15.5
- Fluid Dynamic Efficiency Class D
- Grease Filtering Efficiency - GFE hood 76 %
- Grease Filtering Efficiency Class C
- Internal/external motor Internal
- Main lighting colour temperature [K] 6500
- Lighting Efficiency - LE hood 46.9 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 457 m3/h
- Motor unit rated power 150 W
- Motor type/model C series
- Net depth 545 mm
- Net height max 1108 mm
- Net height min 728 mm
- Net weight 8.5 kg
- Net width 600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 59 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 61 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 63 dB
- Nominal Power of the Lighting System - W L 8 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power cabel length 120 cm
- Power rating 158 W
- Power Supply Voltage 230V
- Power unit of main lighting 4 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 59 dB
- Noise level 63 dB
- Time Increase Factor - f 1.4
- Type of main lighting LED GU10
