Въглероден филтър
Чиста и ефективна екстракция на въздуха благодарение на интегрираните въглеродни филтри. (* въглеродният филтър се продава отделно).
-
Осветление: халогенно
Нашите абсорбатори са оборудвани с халогенно осветление. Във всички модели включването на осветлението е независимо от действието на абсорбатора. Резултатът е удобство за потребителя.
i
Produktu aprakstā sniegtie grafiskie materiāli, piemēram, attēli un video parāda, kā darbojas kāda konkrēta funkcija un var precīzi neatspoguļot konkrētu produkta modeli.

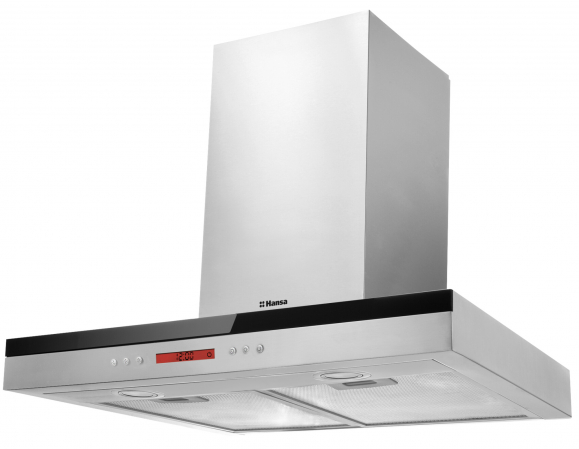

OKP662TH
OKP662TH
-
Въглероден филтър
-
електронен дисплей
-
Осветление: халогенно
-
Īpašības
- Accessories Pipe
- Air flaps Yes
- Delay Yes
- Maximum time of delay 15 '
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Aprīkojums
- Carbon filter(s) included Yes
- Number of carbon filters 1
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Soft touch
- Type of display LCD
- Type of grease filters Aluminium frame
- Carbon filter type FWP 03
-
Tehniskie dati
- Air flow at 1 speed - extractor by EN 61591 430 m3/h
- Air flow at 2 speed - extractor by EN 61591 540 m3/h
- Air flow at 3 speed - extractor by EN 61591 642 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 642 m3/h
- Air Flow at Minimum Speed in Normal Use 430 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 396 m3/h
- Air Pressure at Best Efficiency Point P BEP 340.5 Pa
- Ikgadējais elektroenerģijas patēriņš 78 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 87 lux
- Container qty 40'HQ 441
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in PRC
- Dimensions of grease filter 340 x 260,2 mm
- Display color Red
- Distance from light cover to wall 385 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 173.1 W
- Šķidrumu dinamikas efektivitāte 21.6
- Šķidrumu dinamikas efektivitāte C
- Grease Filtering Efficiency - GFE hood 82.5 %
- Tauku filtrēšanas efektivitāte C
- Internal/external motor Internal
- Main lighting colour temperature [K] 6500
- Apgaismojums 29 lux/W
- Apgaismojuma efektivitātes klase A
- Apgaismojums A
- Maximum Possible Air Flow 642 m3/h
- Motor unit rated power 230 W
- Motor type/model E series
- Net depth 500 mm
- Net height max 950 mm
- Net height min 570 mm
- Neto svars 13.1 kg
- Net width 600 mm
- Trokšņu līmenis 57 dB
- Trokšņu līmenis 63 dB
- Trokšņu līmenis 68 dB
- Nominal Power of the Lighting System - W L 3 W
- Number of motor units 1
- Number units of main lighting 2
- Gaisa izplūdes caurules diametrs 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.53 W
- Strāvas kabeļa garums 120 cm
- Maksimālā jauda 234 W
- Barošanas spriegums 230V
- Power unit of main lighting 2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 57 dB
- Trokšņu līmenis 68 dB
- Time Increase Factor - f 1.2
- Type of main lighting LED - other
